AS-PATH属性とは
あるプレフィックスに到達するために通過すべきAS番号の順序付きリストです。宛先に到達するために最短のASパスの経路を優先します。ASパスを設定により付加(プリペンド)することで、AS-PATHを長く見せ、経路を操作することができます。
検証
構成と設定

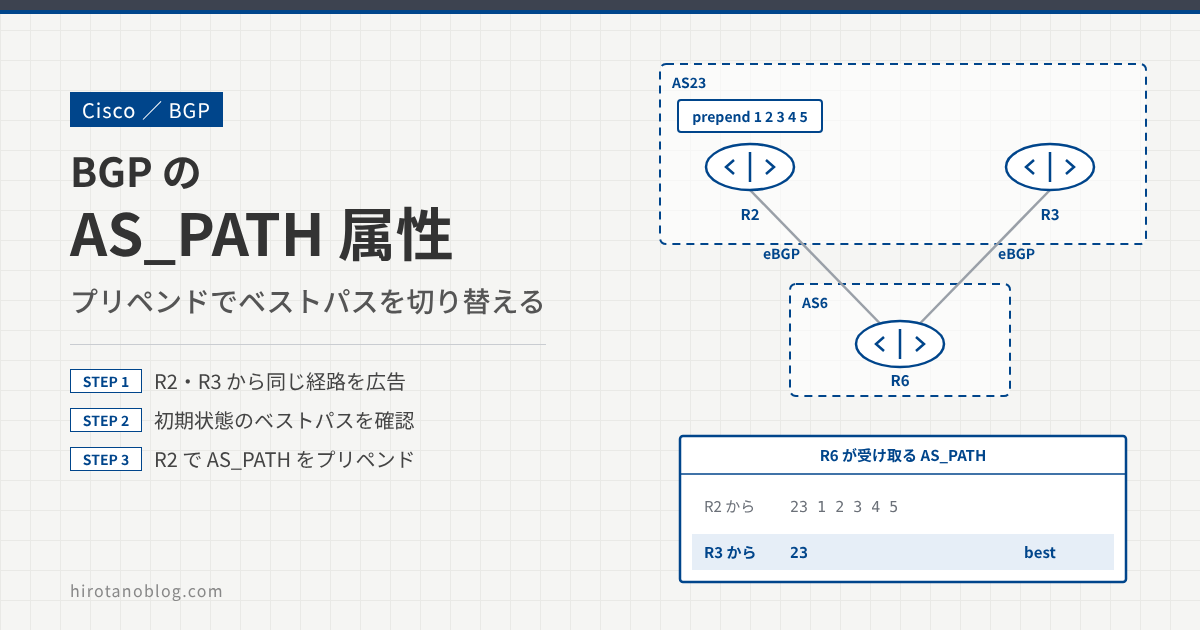

R2とR3にループバックで同じプレフィックス23.23.23.23/32を設定し、R6にアドバタイズします。 ここで、R2のAS-PATHをプリペンドして、R3からのプレフィックス経路を優先してみます。

R2(config)# int loopback 23 R2(config-if)# ip add 23.23.23.23 255.255.255.255 ! R2(config)# router bgp 23 R2(config-router)# bgp router-id 2.2.2.2 R2(config-router)# neighbor 192.168.26.6 remote-as 6 R2(config-router)# network 23.23.23.23 mask 255.255.255.255
R3(config)# int loopback 23 R3(config-if)# ip add 23.23.23.23 255.255.255.255 ! R3(config)# router bgp 23 R3(config-router)# bgp router-id 3.3.3.3 R3(config-router)# neighbor 192.168.36.6 remote-as 6 R3(config-router)# network 23.23.23.23 mask 255.255.255.255
R6(config)# router bgp 6 R6(config-router)# neighbor 192.168.26.2 remote-as 23 R6(config-router)# neighbor 192.168.36.3 remote-as 23
確認
R6のBGPテーブルを確認します。R2とR3ともにAS-PATHは 23 を経由していることがわかります。
R6# show ip bgp BGP table version is 2, local router ID is 6.6.6.6 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter, x best-external, a additional-path, c RIB-compressed, Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found Network Next Hop Metric LocPrf Weight Path * 23.23.23.23/32 192.168.36.3 0 0 23 i *> 192.168.26.2 0 0 23 i
R6# show ip bgp 23.23.23.23 BGP routing table entry for 23.23.23.23/32, version 2 Paths: (2 available, best #2, table default) Advertised to update-groups: 1 23 192.168.36.3 from 192.168.36.3 (3.3.3.3) Origin IGP, metric 0, localpref 100, valid, external rx pathid: 0, tx pathid: 0 23 192.168.26.2 from 192.168.26.2 (2.2.2.2) Origin IGP, metric 0, localpref 100, valid, external, best rx pathid: 0, tx pathid: 0x0
R2とR3で全ての属性値が同じのため、ルータIDの小さいR2(2.2.2.2)をベストパスとして認識しています。
ASプリペンド
では、R2で、AS-PATHを付加して、R3の方をベストパスにしてみます。R2でAS1から5までを追加(プリペンド)してみます。
R2(config)# route-map ASPREPEND permit 10 R2(config-route-map)# set as-path prepend 1 2 3 4 5 R2(config)# router bgp 23 R2(config-router)# neighbor 192.168.26.6 route-map ASPREPEND out
BGPプロセスをクリアして、R6のBGPテーブルを確認します。
R6# show ip bgp 23.23.23.23 BGP routing table entry for 23.23.23.23/32, version 3 Paths: (2 available, best #1, table default) Advertised to update-groups: 1 23 192.168.36.3 from 192.168.36.3 (3.3.3.3) Origin IGP, metric 0, localpref 100, valid, external, best rx pathid: 0, tx pathid: 0x0 23 1 2 3 4 5 192.168.26.2 from 192.168.26.2 (2.2.2.2) Origin IGP, metric 0, localpref 100, valid, external rx pathid: 0, tx pathid: 0
R2の方のルートではAS1〜5が追加されています。AS番号は左から順番に自身より近い番号となります。 そのため、R2はまず、AS1〜AS5を追加して、それからAS23を追加して、AS6へ送信しています。 R3よりR2からのルートの方が、AS-PATHが長いため、R3からのルートをベストパスとして認識します。
